THE RANGE

Stargroup offers the complete range of tube laser cutting systems manufactured by Golden Laser.

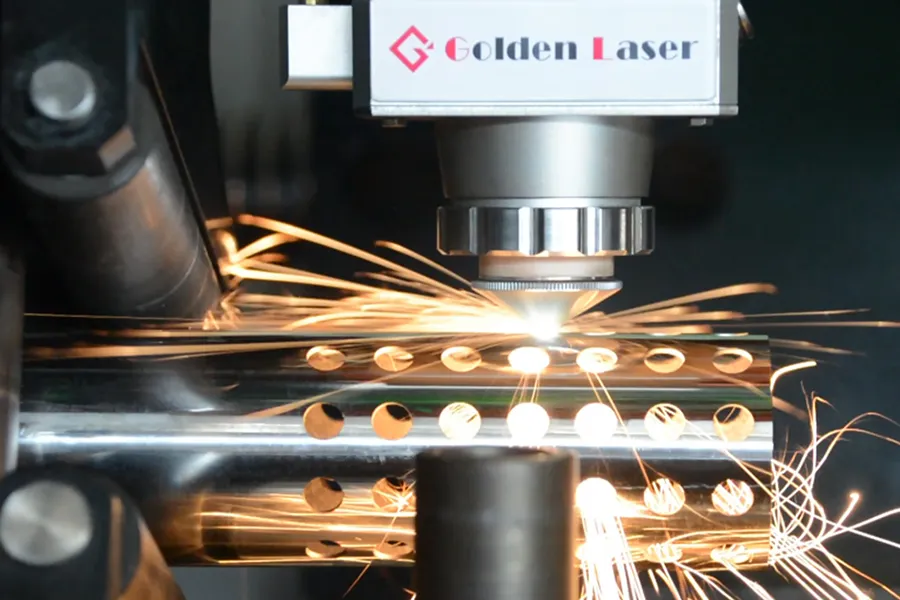

The laser tube cutting system is an automatic metal tube processing plant that allows a finished part, complete with all the required cutting operations, to be obtained in a single processing cycle.

This approach represents a technological and productive leap forward compared to traditional methods, which require several steps on different operating machines to successively carry out the required cutting, deburring, drilling, end milling, jointing and special CNC machining operations.

All of the products offered are characterised by high cutting quality, an advanced degree of automation that optimises workflow efficiency, state-of-the-art technology that offers flexibility and versatility, allowing for diversified projects in different sectors, and extensive customisation.

S12-plus

S12 Plus Golden Laser tube

i25A-3D

Laser tube i25A-3D Golden Laser

Mega 3

Mega 3 Golden Laser tube

MODEL COMPARISON



S12-plus
S12 Plus
i25A-3D
i25A-3D

Mega 3
Load length – mm from 5.500 to 6.300 from 6.000 to 9.000 from 6.000 to 14.000
Cutting head stroke in cutting area – mm Y=150
Z=125
Y= 250
Z= 125
Y= 1.250
Z= 420
Spindle rotation speed – r.p.m. 120 130 75 r/min
Discharge length – mm 6.000 6.000 6.000
Positioning accuracy – mm ± 0,03 ± 0,03 0.05/10
Loading-unloading machine orientation Load Left – Unload Right Load Left – Unload Right
